Plan a Host Pool Architecture and Recommendations for Resource Groups, Subscriptions, and Management Groups – Design the Azure Virtual Desktop Architecture

Plan a Host Pool Architecture and Recommendations for Resource Groups, Subscriptions, and Management Groups

We’ll cover several topics in this section.

What Are Host Pools?

A host pool is a collection of Azure virtual machines with the same configuration. An Azure VM can be registered to Azure Virtual Desktop as session hosts when you run the Azure Virtual Desktop agent on the Azure VM. All session host virtual machines in a host pool should be sourced from the same image for a consistent user experience.

A host pool can be one of two types.

•\   Personal, where each user gets assigned to an individual session host.

•\   Pooled, where session hosts can accept connections from any user authorized to an app group within the host pool

You can set additional properties on the host pool to change its load-balancing behavior and the number of sessions each session host can take. You control the resources published to users through app groups. Refer to the “Configure host pool settings” section in Chapter 8 for a detail hostpool configuration.

What Are App Groups?

An app group is a logical grouping of applications installed on session hosts in the host pool. An app group can be one of two types.

•\    RemoteApp: Users access RemoteApp (a single application like Word or Excel) to individually publish to the app group. To publish to RemoteApp, you must create a RemoteApp app group. You can create multiple RemoteApp app groups to accommodate different worker scenarios. Different RemoteApp app groups can also contain overlapping RemoteApp instances.

•\    Desktop: Users access the full desktop. By default, a desktop app group is automatically created whenever you create a host pool. You can’t create another desktop app group in the host pool while a default desktop app group exists, but you can delete the default desktop group and create new one with a different name or use PowerShell/ARM to create a desktop group as per the naming standards you want.

To publish resources to users, you must assign them to app groups. When assigning users to app groups, consider the following:

•\   A user can be assigned to both a desktop app group and a RemoteApp app group in the same host pool. However, users can’t launch both types of app groups at the same time in a single session.

•\   A user can be assigned to multiple app groups within the same host pool, and their feed will be an accumulation of both app groups.

Calculate a Configuration for Azure Virtual Machine Capacity Requirements – Design the Azure Virtual Desktop Architecture

Calculate a Configuration for Azure Virtual Machine Capacity Requirements

The Azure Virtual Desktop session host size is the main factor that can impact Azure Virtual Desktop performance, so the session host size needs to be calculated based on the existing VDI usage (refer to the assessment) or based on the user application requirement. The following are some of the examples and recommendations for pooled as well as personal desktops:

•\    Pooled sizing example: Consider you have 100 users who want Azure Virtual Desktop and as per the VDI assessment report all users require two CPUs and 4 GB memory. All users are from same region and want to go with a pooled desktop since they are using same set of applications for their day-to-day work. We can go with a D8s_v4 size VM, which comes with eight CPUs and 16 GB memory, and it will allow you to assign four users per VM. Table 2-3 shows the reference size and per user cost calculation.

Table 2-3.  Azure Virtual Desktop Pooled Sizing Example

•\    Personal sizing example: Consider you have 100 users who want a new Azure Virtual Desktop, and as per the VDI assessment report, all users require two CPUs and 4 GB memory. All users are from the same region, but they need a different set of application/software for their day-to-day work. In this case, you can create a personal desktop with a D2s_v3 size VM, which comes with two CPUs and 8 GB memory. Table 2-4 is the reference size and per user cost calculation.

Table 2-4.  Azure Virtual Desktop Personal Sizing Example

Set Up Azure Monitor for Azure Virtual Desktop – Implement and Manage Networking for Azure Virtual Desktop

Set Up Azure Monitor for Azure Virtual Desktop

To set up or open the Azure Monitor for Azure Virtual Desktop, follow these steps:

\  a.\  First you need to log in to the Azure portal. After you are logged in to the Azure portal, search for and select Azure Monitor from the Azure portal.

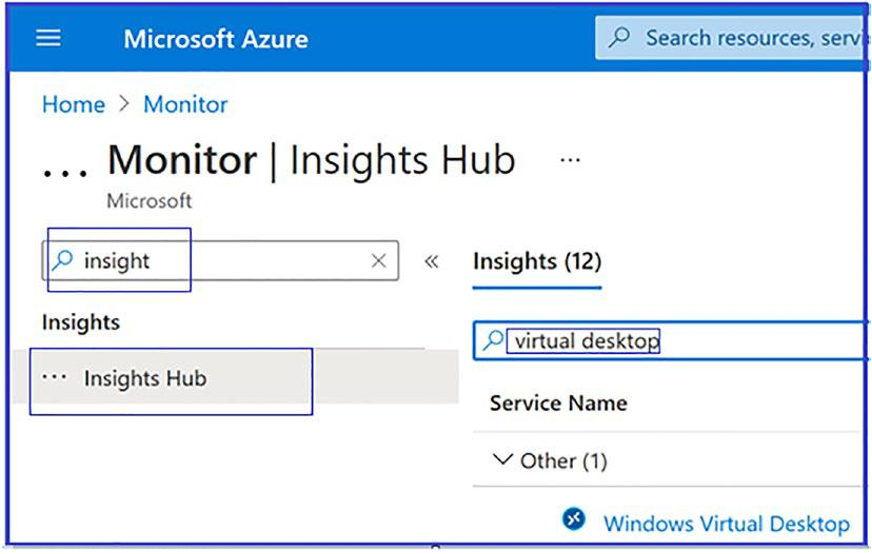

\  b.\  Select Insights Hub under Insights, and then select Azure Virtual Desktop. See Figure 4-39.

Figure 4-39.  Azure Monitor

\  c.\  Once you have the page open, enter the subscription, resource group, host pool, and time range of the environment you want to monitor.

\  d.\  As an additional step, you will need to set up the log analytics setting, because before you start using the Azure Monitor for Azure Virtual Desktop, you will need at least one Log Analytics workspace. Use a designated Log Analytics workspace for your Azure Virtual Desktop session hosts to ensure that performance counters and events are only collected from session hosts in your Azure Virtual Desktop deployment.

How Do I Set Up Resource Diagnostic Settings on a Virtual Desktop Workspace?

To gather information on your Azure Virtual Desktop infrastructure, you will need to enable several diagnostic settings on your Azure Virtual Desktop host pools and workspaces (this is your Azure Virtual Desktop workspace, not your Log Analytics workspace). To set your resource diagnostic settings, follow these steps:

\  1.\  Select the Diagnostic settings host pool.

\  2.\  Under Monitoring, select “Diagnostic settings.”

Log Analytics Workspace for Azure Monitor

It is important to have an analytics workspace, because you will need at least one Log Analytics workspace to start using Azure Monitor for Azure Virtual Desktop. Utilize a designated Log Analytics workspace for your Azure Virtual Desktop session hosts to ensure that performance counters and events are collected only from session hosts in your Azure Virtual Desktop deployment.

If you are new to Azure monitoring and it’s the first time you’re opening Azure Monitor for Azure Virtual Desktop, you will need set up the Azure Monitor for your Azure Virtual Desktop environment. To configure your resources, follow these steps:

\ 1.\ Log in and open Azure Monitor for Azure Virtual Desktop in the Azure portal at https://aka.ms/azmonwvdi, and then select configuration workbook.

\ 2.\ Select an environment to configure under Subscription, Resource Group, and Host Pool.

The configuration workbook sets up your monitoring environment and lets you check the configuration after you have finished the setup process. It’s important to check your configuration if items in the dashboard aren’t displaying correctly or when the product group publishes updates that require new settings. You need to enable the supported diagnostic tables such as Checkpoint, Error, Management, Connection, HostRegistration, and AgentHealthStatus.

Azure Advisor Tool to Monitor Azure Virtual Desktop – Implement and Manage Networking for Azure Virtual Desktop

Azure Advisor Tool to Monitor Azure Virtual Desktop

You can use Azure Advisor to monitor Azure Virtual Desktop. Azure Advisor is the go-to tool, and I frequently use it for monitoring issues. Whenever you come across an issue in Azure Virtual Desktop, always check Azure Advisor first. Azure Advisor will give you directions for how to solve the problem, or at least point you toward a resource that can help. This section will tell you how to set up Azure Advisor in your Azure Virtual Desktop deployment to help your users.

What Is Azure Advisor?

Azure Advisor analyzes your configurations and telemetry to offer personalized recommendations to solve common problems. With these recommendations, you can optimize your Azure resources for reliability, security, operational excellence, performance, and cost.

How Do I Start Using Azure Advisor?

All you need to get started is an Azure account on the Azure portal. First, open the Azure portal and then select Advisor under Azure Services, as shown in Figure 4-40. You can also enter Azure Advisor into the search bar in the Azure portal.

Figure 4-40.  Azure Advisor

When you open Azure Advisor, you will see five different categories: Cost, Security, Reliability, Operational Excellence, and Performance.

Tips  For Azure Advisor, make sure to check your recommendations regularly. Azure Advisor updates its active recommendations multiple times per day. Reviewing the latest recommendations can help you avoid larger issues by assisting you in spotting and solving smaller ones. Constantly attempt to solve the issues with the highest priority level in Azure Advisor. High-priority issues are marked with red. Leaving high-priority recommendations unresolved can lead to problems down the line.

Best practice: If a recommendation seems less important, you can dismiss it or postpone it. But do not dismiss recommendations until you know why they are appearing and are sure they won’t have a negative impact on you or your users.

How Do I Resolve Azure Advisor Recommendations? – Implement and Manage Networking for Azure Virtual Desktop

How Do I Resolve Azure Advisor Recommendations?

This section describes how you can resolve recommendations that appear in Azure Advisor for Azure Virtual Desktop. Resolving recommendations involve “No validation environment enabled,” “Not enough production (non-validation) environments enabled,” and “Not enough links are unblocked to successfully implement your VM.” Here are the details for resolving each mentioned recommendation:

No Validation Environment Enabled

This recommendation is under Operational Excellence. The recommendation should also show you a warning message like this: You don’t have a validation environment enabled in this subscription. When you made your host pools, you selected No for “Validation environment” in the Properties tab. To ensure business continuity through Azure Virtual Desktop service deployments, make sure you have at least one host pool with a validation environment where you can test for potential issues.

You as an admin can make this warning message disappear by allowing a validation environment in one of your host pools. To enable the validation environment, follow these steps:

\ 1.\ Log in to your Azure portal home page and choose the host pool you want to change.

\ 2.\ Choose the host pool you want to change from a production environment to a validation environment.

\ 3.\ In your host pool, select Properties on the left column. Next, scroll down until you see “Validation environment.” Select Yes, and then select Apply.

Note  These changes won’t make the warning disappear immediately. Allow enough time for the recommendations to disappear on their own.

As a best practice, you can check the Azure Advisor updates twice a day.

Not Enough Production (Non-validation) Environments Enabled

Not enough production environment is another recommendation that appears under Operational Excellence. For this recommendation, the warning message appears because you have too many host pools in your validation environment or you don’t have any production host pools. Microsoft recommends users have fewer than half of their host pools in a validation environment. To resolve this warning, follow these steps:

\  1.\  Log in to the Azure portal home page.

\ 2.\ Choose the host pools you want to change from validation to production.

\ 3.\ In your host pool, select the Properties tab in the column on the right side of the screen. Next, scroll down until you see “Validation environment.” Select No, and then select Apply. See Figure 4-41.

Figure 4-41.  Nonproduction environment recommendation

Not Enough Links Are Unblocked to Successfully Implement Your VM – Implement and Manage Networking for Azure Virtual Desktop

Not Enough Links Are Unblocked to Successfully Implement Your VM

Another recommendation occurs under Operational Excellence. You need to unblock specific URLs to make sure that your virtual machine (VM) functions properly. You can find the list on the Safe URL list. If the URLs aren’t unblocked, then your VM won’t work properly. To resolve the recommendation, make sure you unblock all the URLs on the Safe URL list and use the Service Tag or FQDN tags to unblock URLs.

Azure Virtual Desktop Common Issues and Their Troubleshooting

Problem: Unable to open remote virtual desktop client or its stops responding for Windows 10.

Solution: You as an admin can reset the user data from the About page or use the msrdcw.exe /reset [/f] command. Use this command to remove your user data, restore default settings, and unsubscribe from all workspaces.

Problem: Unable to open web client.

Solution: There are multiple reasons for being unable to open the web client.

\ a.\ As a first step, test your Internet connection by opening another
website in your browser or using different browser.
\ b.\ Additionally, you can use nslookup to confirm DNS can resolve
the FQDN or use a command prompt to run the command
nslookup rdweb.AVD.microsoft.com.

\ c.\ You can try connecting with another client, for instance, Remote
Desktop client for Windows 10 to see if you can open the web client.

Problem: The Virtual Desktop web client keeps prompting for credentials.

Solution: If the web client keeps prompting for credentials, do the following:

\ 1.\ Check and confirm the web client URL is correct. If there is any typo, then correct the URL and try accessing the correct URL.

\ 2.\ If the issue persists, then check and confirm that the credentials you are entering are for the Azure Virtual Desktop environment tied to the URL.

\ 3.\ If issue persists, then clear the browser cookies and browser cache.

\  4.\  You can open your browser in private mode.

Troubleshoot application issues related to AVD using User Input Delay.

The User Input Delay counter can assist in discovering the root cause for bad end-user RDP experiences. Do the following if you see issues:

•\   First check the counter measures how long any user input remains in the queue before it is picked up by a process.

•\   The User Input Delay counter measures the max delta between the input being queued and when it’s picked up by the app in a message loop. Figure 4-42 shows input relay.

Figure 4-42.  AVD using input relay

Troubleshoot Graphic Performance and Quality Issues – Implement and Manage Networking for Azure Virtual Desktop

Troubleshoot Graphic Performance and Quality Issues

You as an admin must know how to detect and troubleshoot experience quality issues with your remote desktop sessions. Counters are offered under the “RemoteFX Graphics” section of Performance Monitor. Below question assists you in identifying and resolving graphics-related performance bottlenecks during Remote Desktop Protocol (RDP) sessions using these counters.

•\    How Do I Find the Remote Session Name?

It is important to find the remote session name to find the graphics performance counters. Follow these steps to identify your instance of each counter:

\ 1.\ First open the Windows command prompt from your remote session and then run the qwinsta command and find your session name.

If your session is hosted in a multisession virtual machine (VM), your instance of each counter is suffixed by the same number that suffixes your session name, such as rdp-tcp 37.

If your session is hosted in a VM that supports virtual graphics processing units (vGPUs), your instance of each counter is stored on the server instead of in your VM. Your counter instances include the VM name instead of the number in the session name, such as “Win8 Enterprise VM.”

•\    How Do I Access Performance Counters?

Once you have decided your remote session name, then perform these steps to collect the RemoteFX Graphics performance counters for your remote session:

\  1.\  First click Start ➤ Administrative Tools ➤ Performance Monitor.

\ 2.\ In the Performance Monitor dialog box, expand Monitoring Tools, select Performance Monitor, and then select Add.

\  3.\  In the Add Counters dialog box, from the Available Counters

list, expand the section RemoteFX Graphics. Then choose the counters to be monitored.

\ 4.\ In the “Instances of selected object” list, select the specific instances to be monitored for the selected counters and then select Add. To select all the available counter instances, select All instances, and then after adding the counters, select OK.

Finally, the chosen performance counters will appear on the Performance Monitor screen.

•\    How Do I Diagnose the Graphics-Related Performance Issues?

Remember, the graphics-related performance problem normally fall into four types:low frame rate, random stalls, high input latency, and poor frame quality.

To address low frame rate, random stalls, and high input latency, first check the Output Frames/Second counter. This measures the number of frames made available to the client. If this value is less than the Input Frames/Second counter, frames are being skipped. To identify the bottleneck, use the Frames Skipped/Second counters. There are three types of Frames Skipped/Second counters.

•\   Frames Skipped/Second (Insufficient Server Resources)

•\   Frames Skipped/Second (Insufficient Network Resources)

•\   Frames Skipped/Second (Insufficient Client Resources)

A high value for any of the Frames Skipped/Second counters implies that the problem is related to the resource the counter tracks. If the Output Frames/Second counter matches the Input Frames/Second counter, you will still notice unusual lag or stalling, and Average Encoding Time may be the culprit. Encoding is a synchronous process that occurs on the server in the single-session (vGPU) scenario and on the VM in the multisession scenario. Average Encoding Time should be less than 33 ms.

Since RDP supports an Average Encoding Time value of 33 ms, it supports an input frame rate up to 30 frames/second. Note that 33 ms is the maximum supported frame rate. In many cases, the frame rate experienced by the user will be lower, depending on how often a frame is provided to RDP by the source.

•\    How to Check the Poor Frame Quality?

Make use of the Frame Quality counter to diagnose frame quality issues. This counter expresses the quality of the output frame as a percentage of the quality of the source frame. The quality loss may be due to RemoteFX, or it may be inherent to the graphics source. If RemoteFX caused the quality loss, the issue may be a lack of network or server resources to send higher-fidelity content.

General Virtual Machine Recommendations – Design the Azure Virtual Desktop Architecture

General Virtual Machine Recommendations

Here are the general virtual machine recommendations:

•\   You must follow the VM requirements to run the operating system; see the Windows 10 computer specifications and system requirements article for detailed requirements.

•\   It is recommended to use premium SSD storage for the OS disk for production workloads.

•\   Graphics processing units (GPUs) are a good choice for users who regularly use graphics-intensive programs for video rendering, 3D design, and simulations.

•\   B-series burstable VMs are a good choice for users who don’t always need maximum CPU performance. D-series is recommended for general users.

Azure Virtual Desktop Workload Types

See Table 2-5.

Table 2-5.  Azure Virtual Desktop Workload Types

Azure Virtual Desktop Multisession (Pooled) – Design the Azure Virtual Desktop Architecture

Azure Virtual Desktop Multisession (Pooled)

Sizing Recommendation

Table 2-6 are the reference usage profiles and VM sizes available for pooled/multisession AVD. The table shows an example of a smaller, proof-of-concept scenario with a user workload of fewer than 20 users.

Table 2-6.  Azure Virtual Desktop Pooled Sizing Recommendation for POC

Table 2-7 shows an example of a smaller, proof-of-concept scenario with a user workload of more than 20 users.

Table 2-7.  Azure Virtual Desktop Pooled Sizing Recommendation

It is always recommended to consider the application/software recommendations while deciding on the usage profile for pooled instances.

Multisession (Pooled) sizing example: Consider you have 100 users who want to use application “xyz” on a pooled host pool, and all users are from the same region. The application xyz recommendation is to have minimum one CPU and 2 GB memory. In this case, you can go with a D8s_v4 size VM, which comes with eight CPUs and 16 GB memory, and it will allow us to assign eight users per VM. D4s_v4 can be used, but it will increase the number of VMs, which results in additional cost for the OS disk. Table 2-8 is the reference size and per user cost calculation.

Table 2-8.  Azure Virtual Desktop Pooled Sizing Example

Azure Virtual Desktop Single-Session (Personal) Sizing Recommendations for Greenfield Deployment

For VM sizing recommendations for single-session scenarios, we recommend at least two physical CPU cores per VM (typically four vCPUs with hyperthreading). If you need more specific VM sizing recommendations for single-session scenarios, ask the software vendors specific to your workload. VM sizing for single-session VMs will likely align with physical device guidelines.

Test Pooled/Personal Azure Virtual Desktop Workload

Microsoft recommends using simulation tools (such as LoginVSI) to test your Azure Virtual Desktop with both stress tests and real-life usage simulations. Make sure your system is responsive and resilient enough to meet user needs, and remember to vary the load size to avoid surprises after moving into production.

Select an Appropriate Licensing Model for Azure Virtual Desktop Based on the Requirements – Design for User Identities and Profiles

Select an Appropriate Licensing Model for Azure Virtual Desktop Based on the Requirements

Azure Virtual Desktop requires a per-user or per-device license to access the desktop, so you must plan the licensing model before you plan the Azure Virtual Desktop deployment. Azure Virtual Desktop (AVD) supports Windows 7/10 and Windows Server licenses as well, and you can select the appropriate licenses based on the operating system you want to use for AVD. The following are the supported licenses for Azure Virtual Desktop:

•\    BYOL Windows 10 and Windows 7: You are eligible to access Windows 10 and Windows 7 with Azure Virtual Desktop if you have one of the following per-user licenses:

•\   Microsoft 365 E3/E5

•\   Microsoft 365 A3/A5/Student Use Benefits

•\    Microsoft 365 F3

•\   Microsoft 365 Business Premium

•\   Windows 10 Enterprise E3/E5

•\   Windows 10 Education A3/A5

•\   Windows 10 VDA per user

•\    BYOL Windows Server: You are eligible to access Windows Server with Azure Virtual Desktop if you have a per-user or per-device RDS CAL license with active Software Assurance (SA).

•\    Per user access pricing for external users: You can also pay a monthly per-user fee to access Azure Virtual Desktop for external users.
